CATERPILLAR

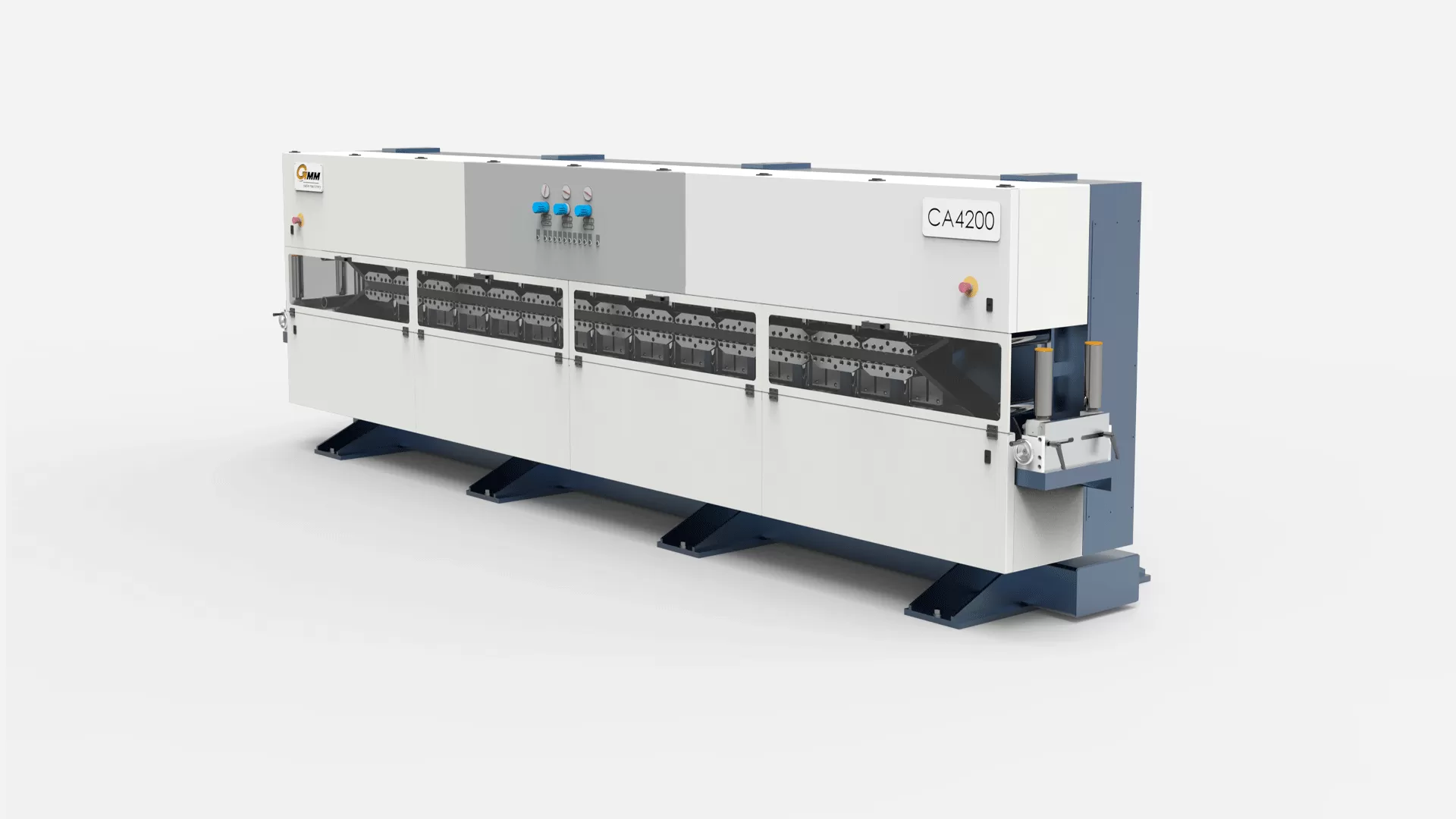

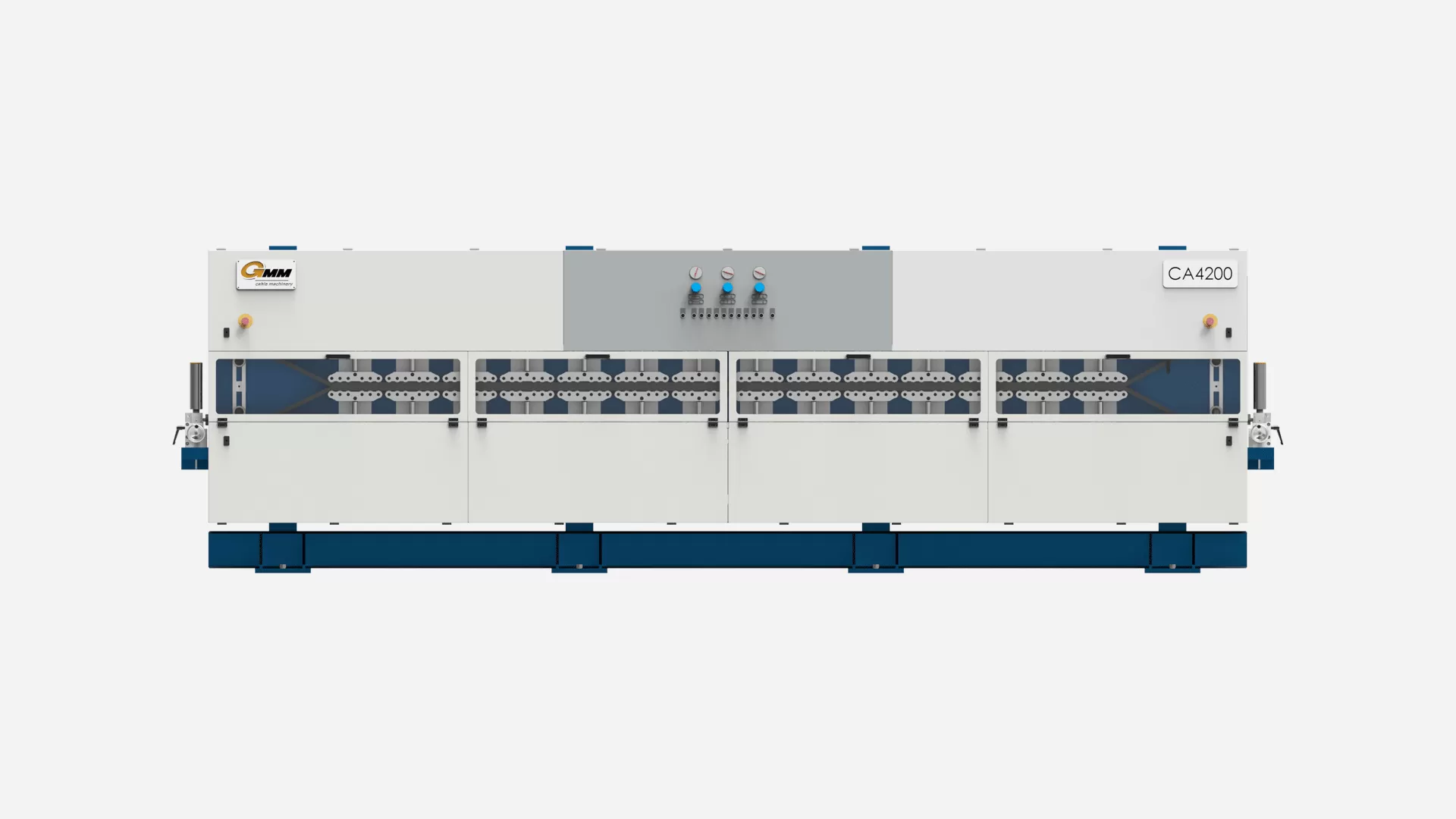

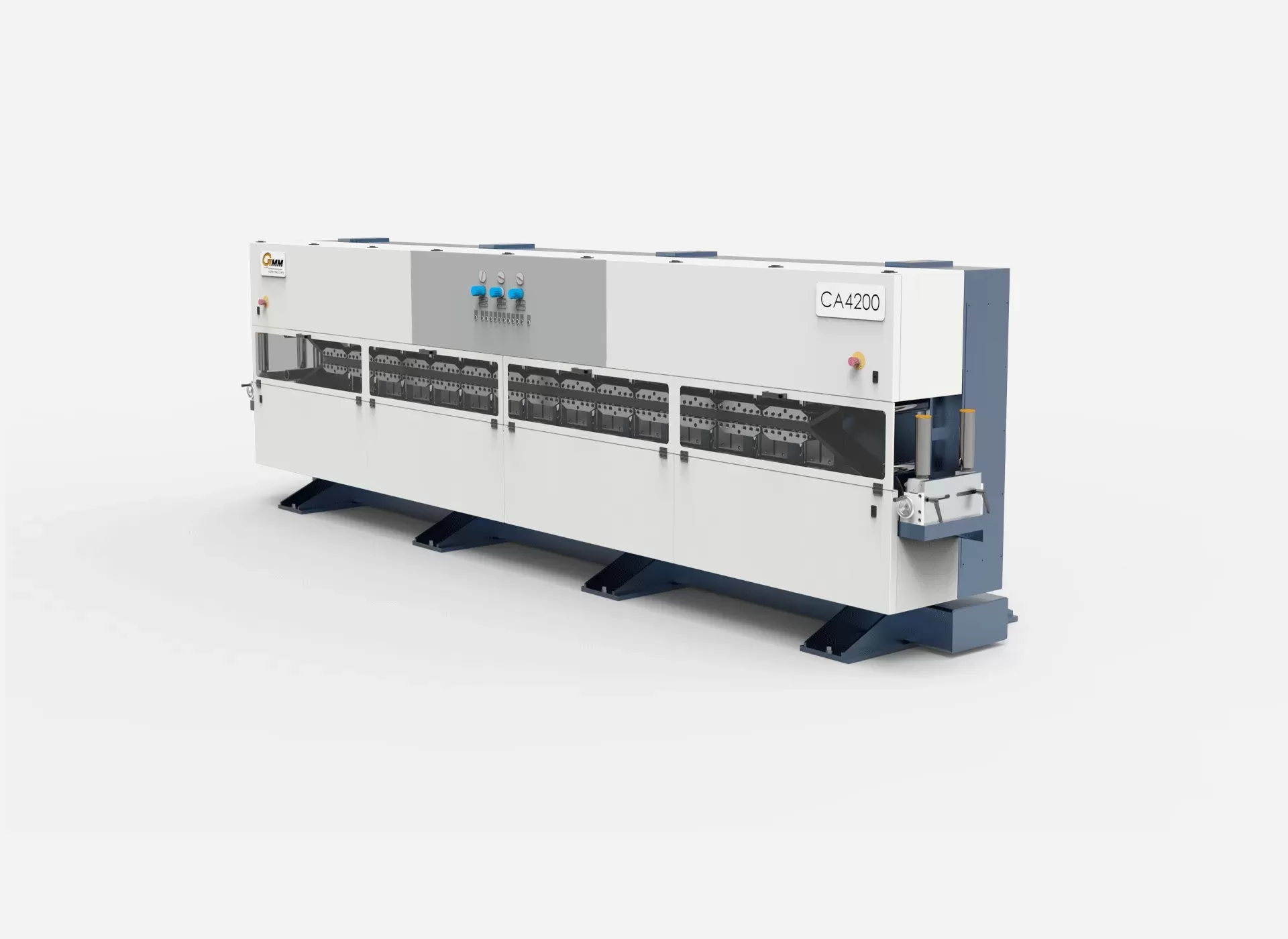

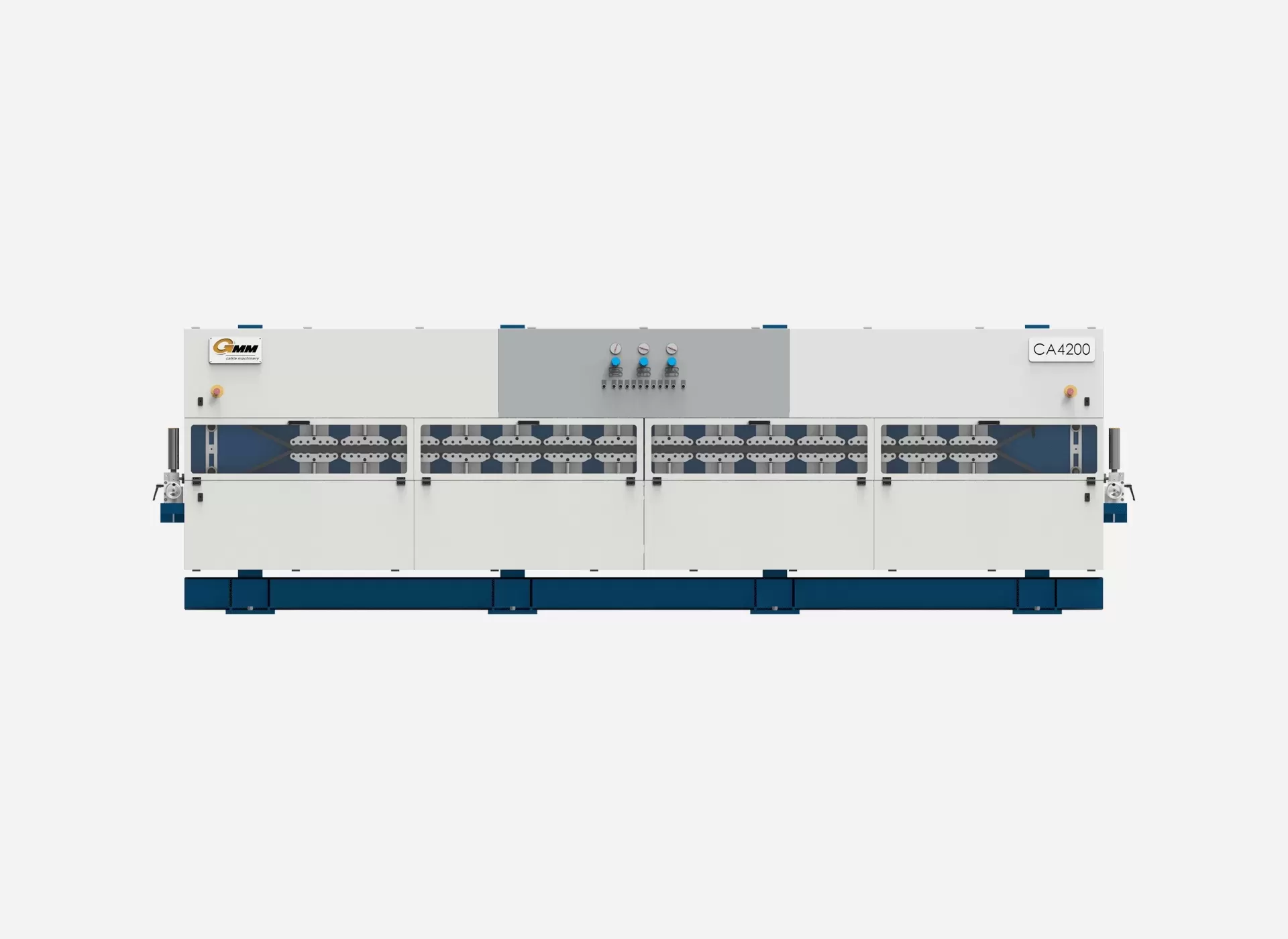

GMM haul-off Caterpillar features a sturdy; welded structure designed for reliable cable pulling. The cable is guided at the inlet and outlet by pairs of horizontal and vertical pulleys, with the vertical set being symmetrically adjustable to match the specifi c cable diameter. Traction is achieved through endless belts that are pneumatically pressed and tense to ensure a secure grip without damaging the product.

Productivity
Sensibility
Flexibility

CATERPILLAR

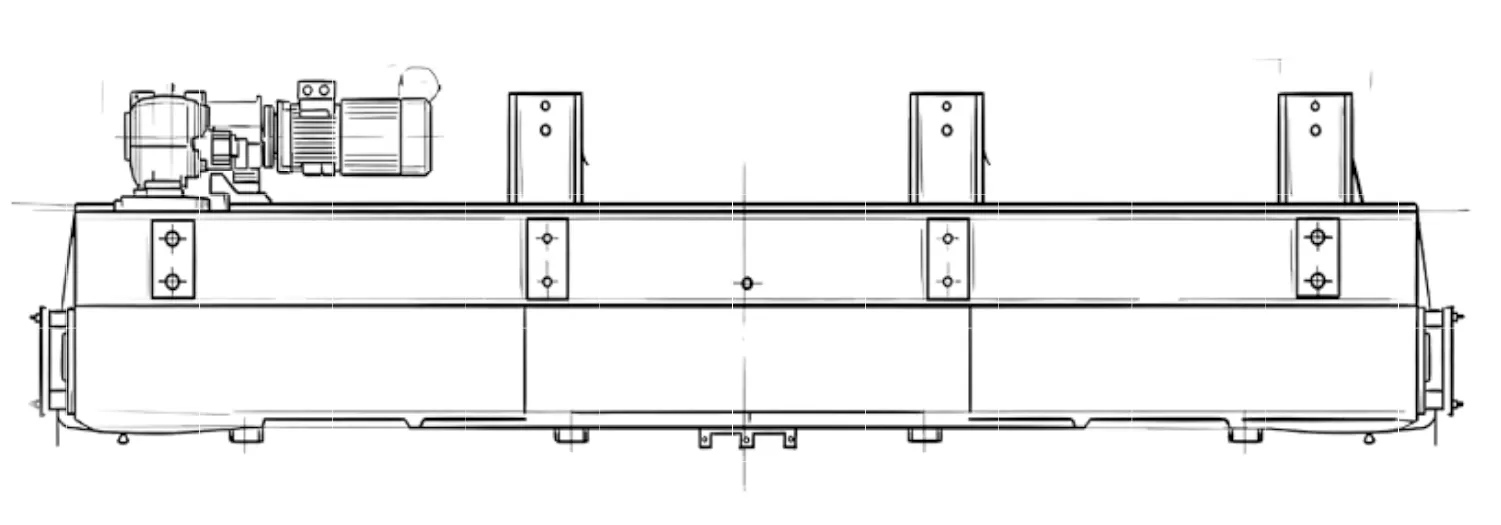

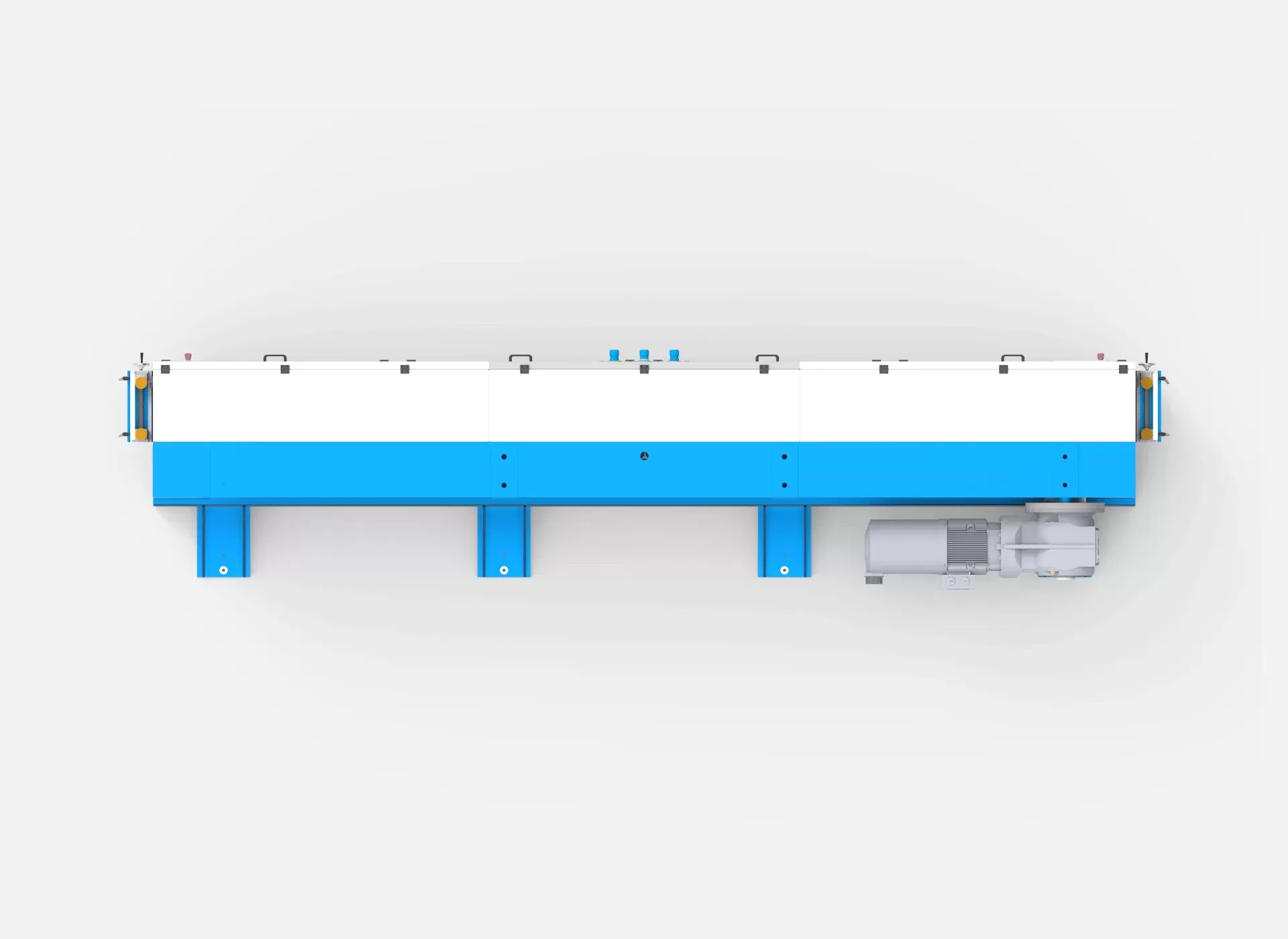

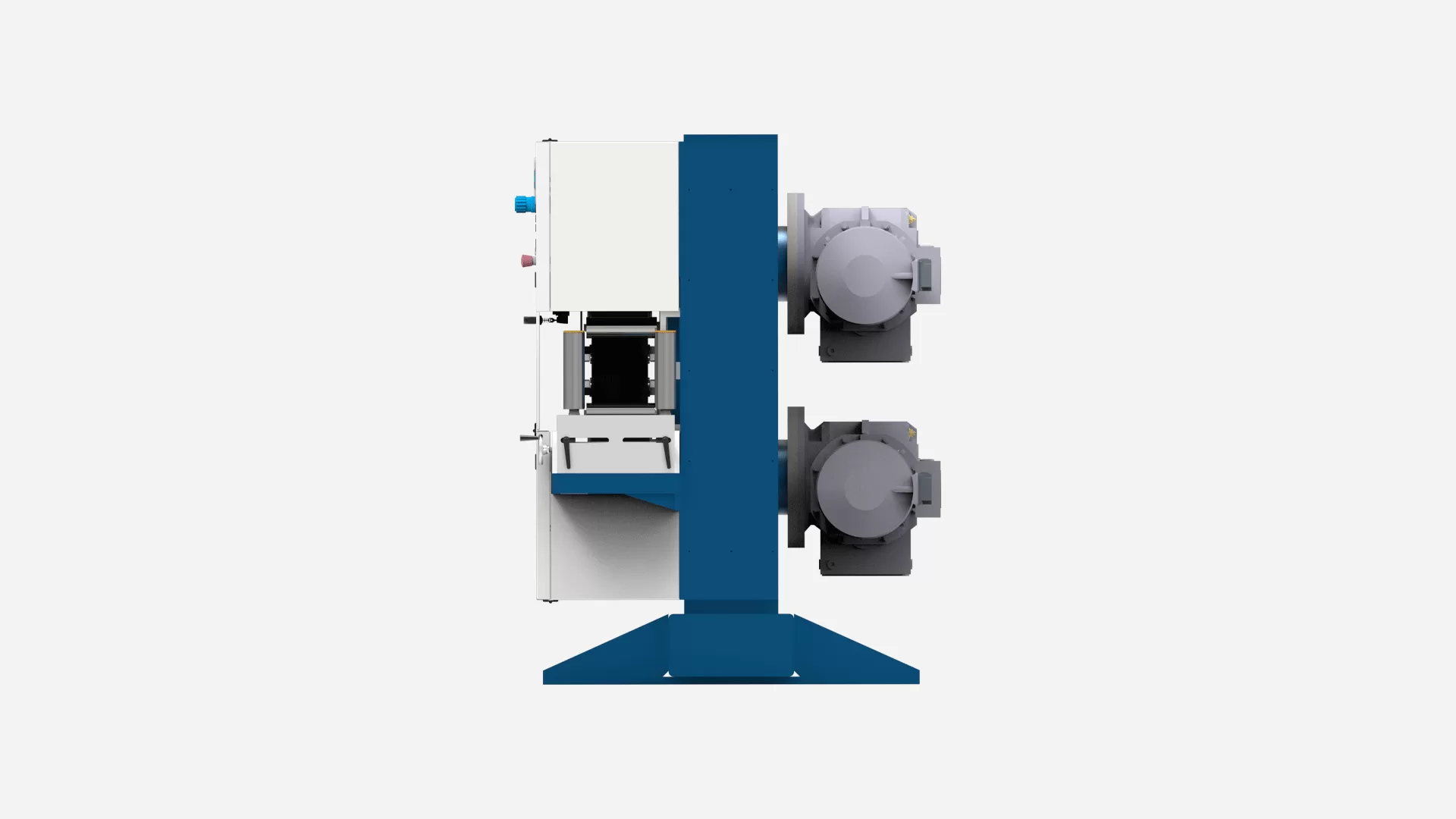

The drive system consists of two motors with gear reducers, utilizing AC drives with encoder feedback to maintain stable speeds across the entire operational range. For precision, the traction belts are guided sideways by pulley fl anges and side rollers along the gripping zone. Additionally, the unit is equipped with a tension measurement sensor for monitoring back tension, while the outlet rollers are customized to accommodate changing cable diameters. The electrical cabinet is housed separately for easier maintenance and heat management.

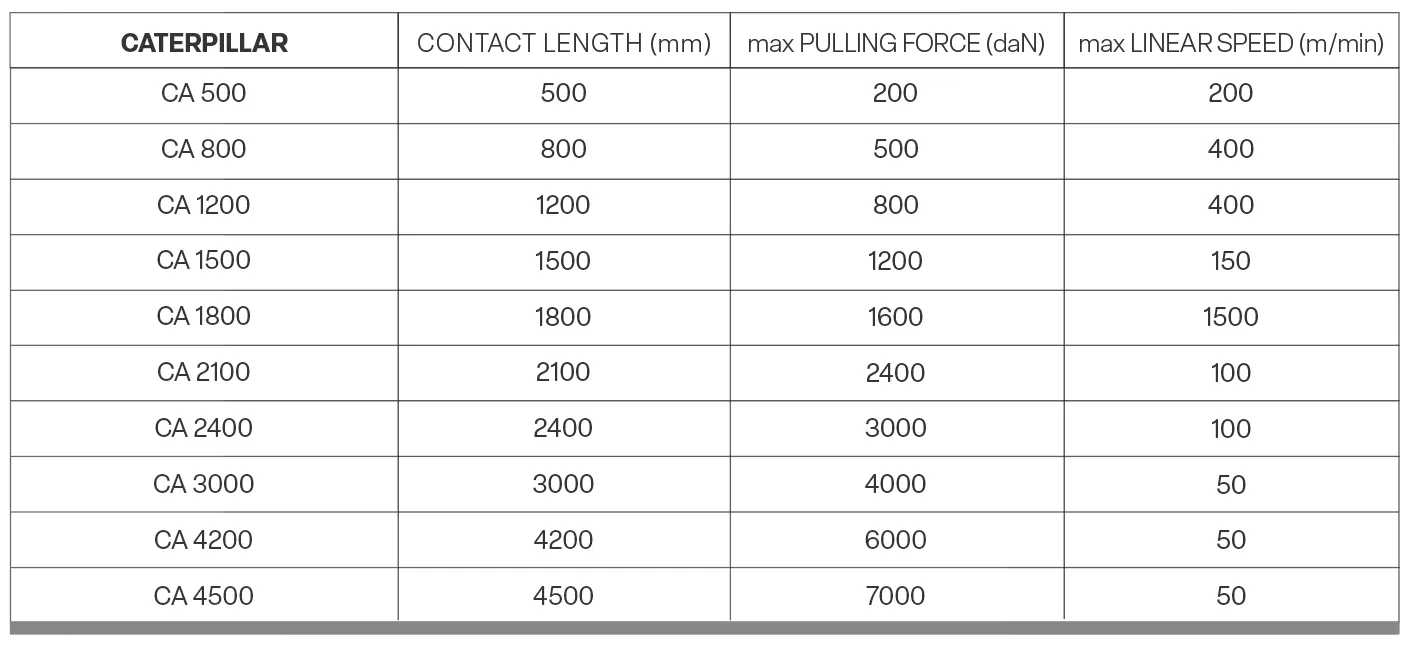

The machine varies from a gripping length of 500 mm up to 4500 mm depending on the operation and customer requirement. Off ering both indoor and outdoor applications securely, our caterpillar meets the industry standards at top level.
