GANTRY TYPE

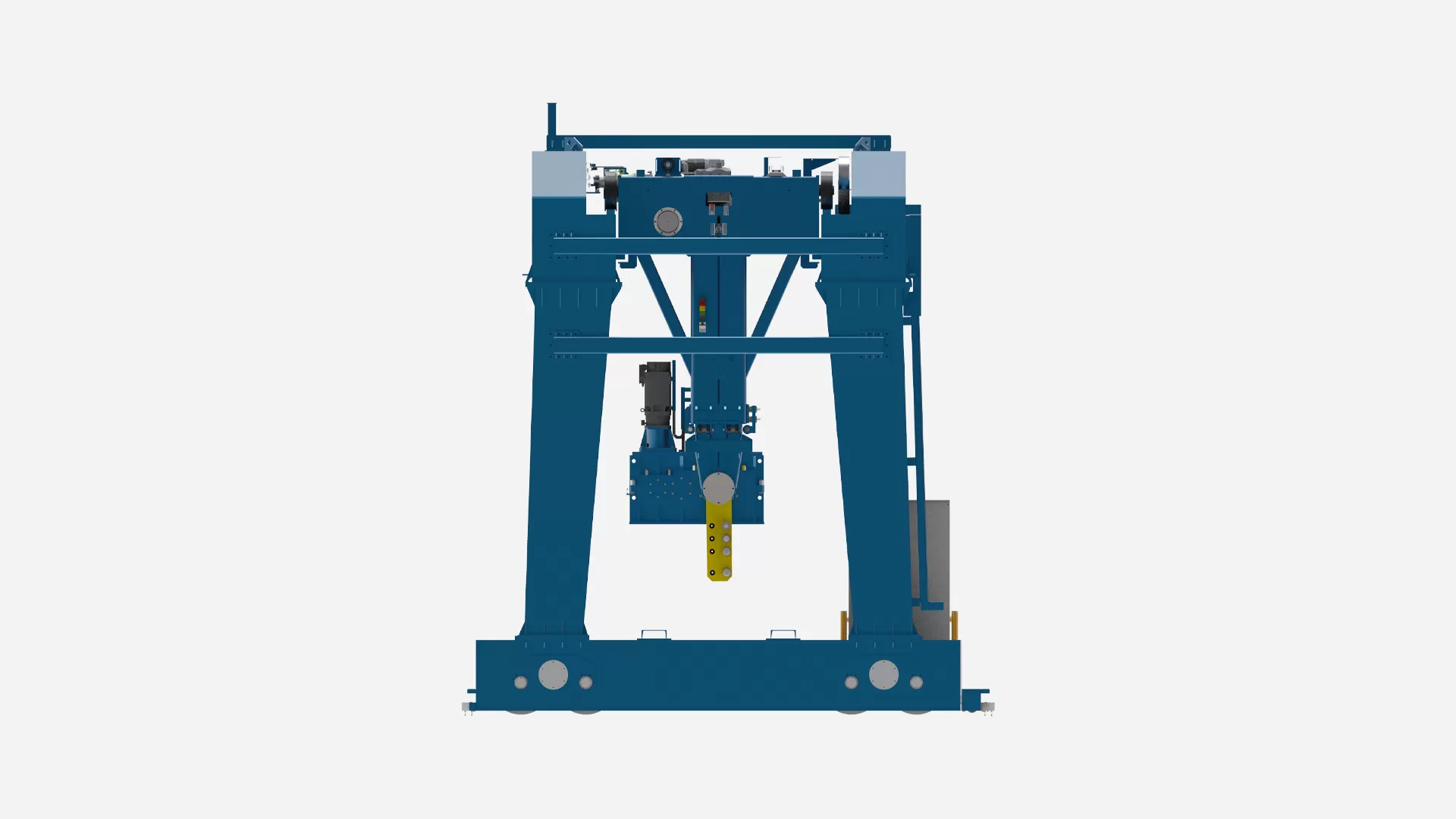

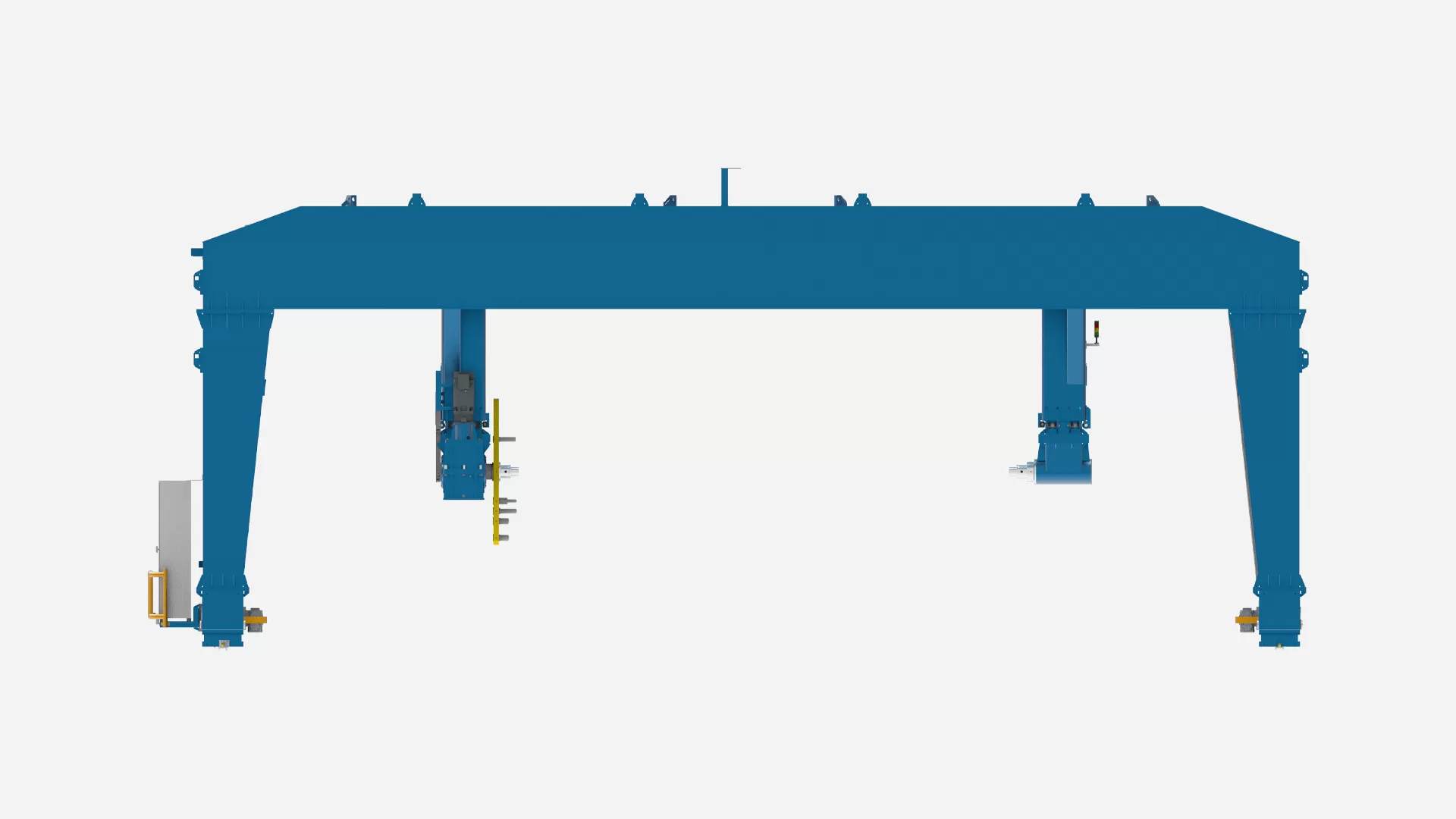

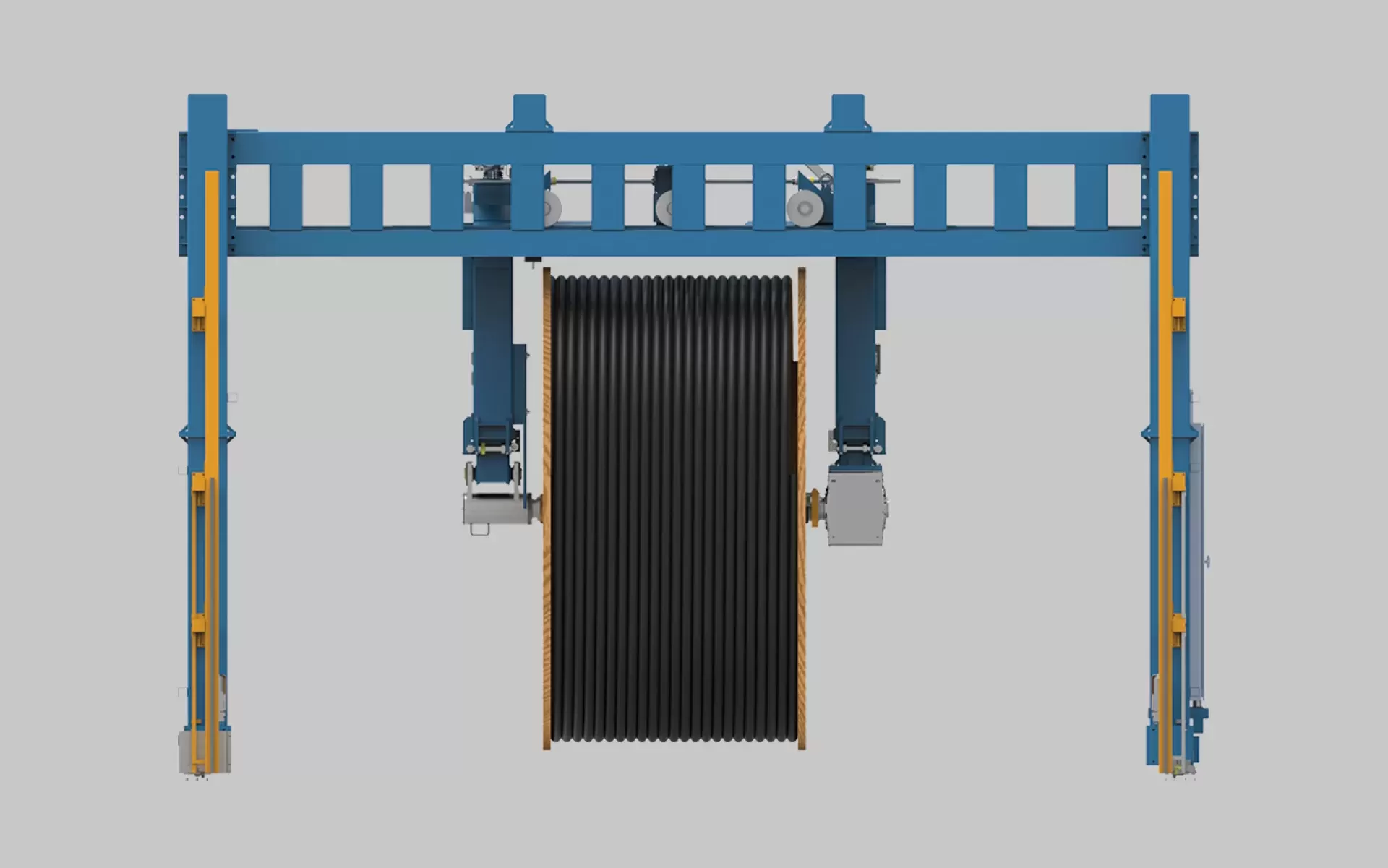

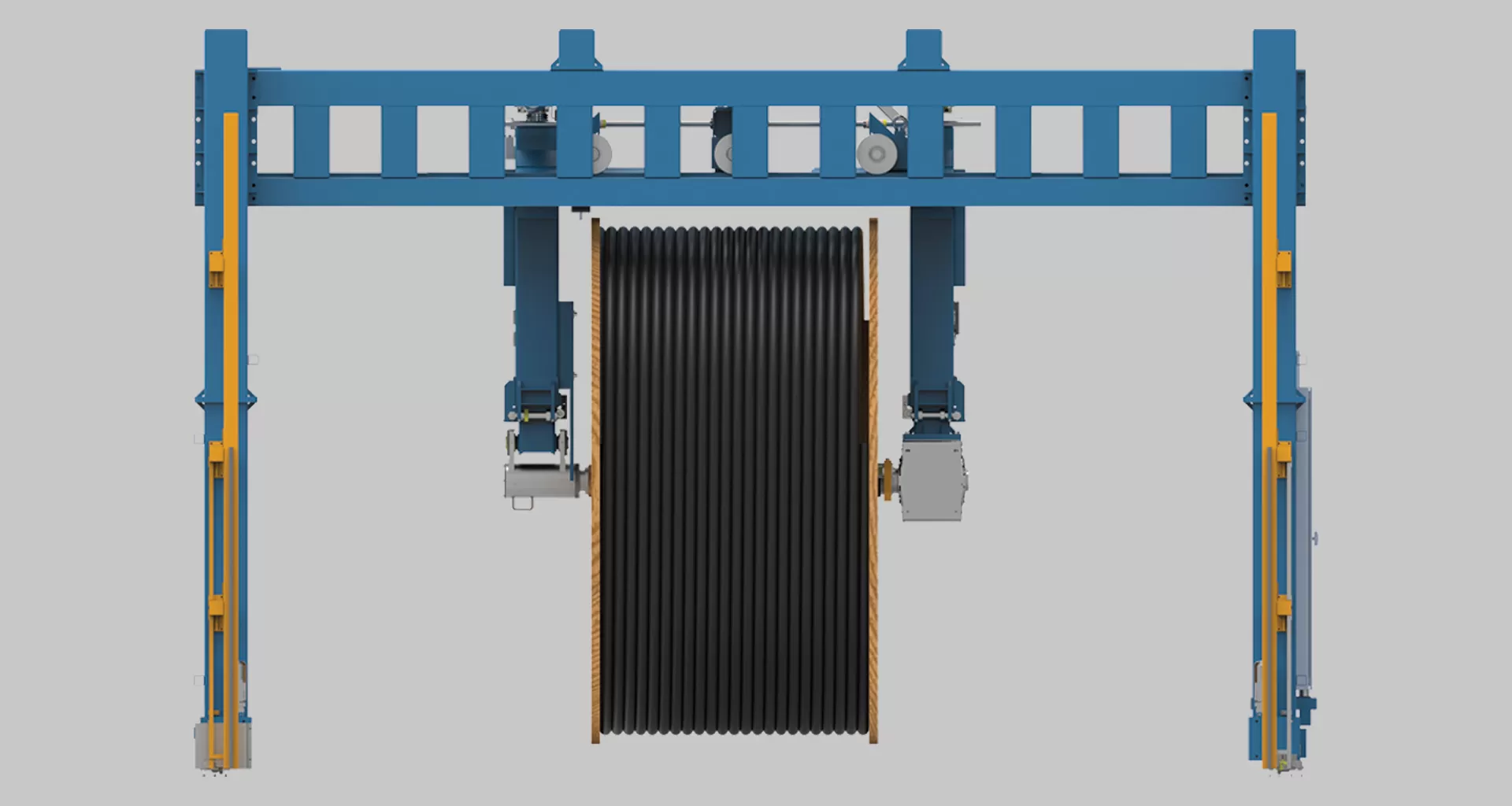

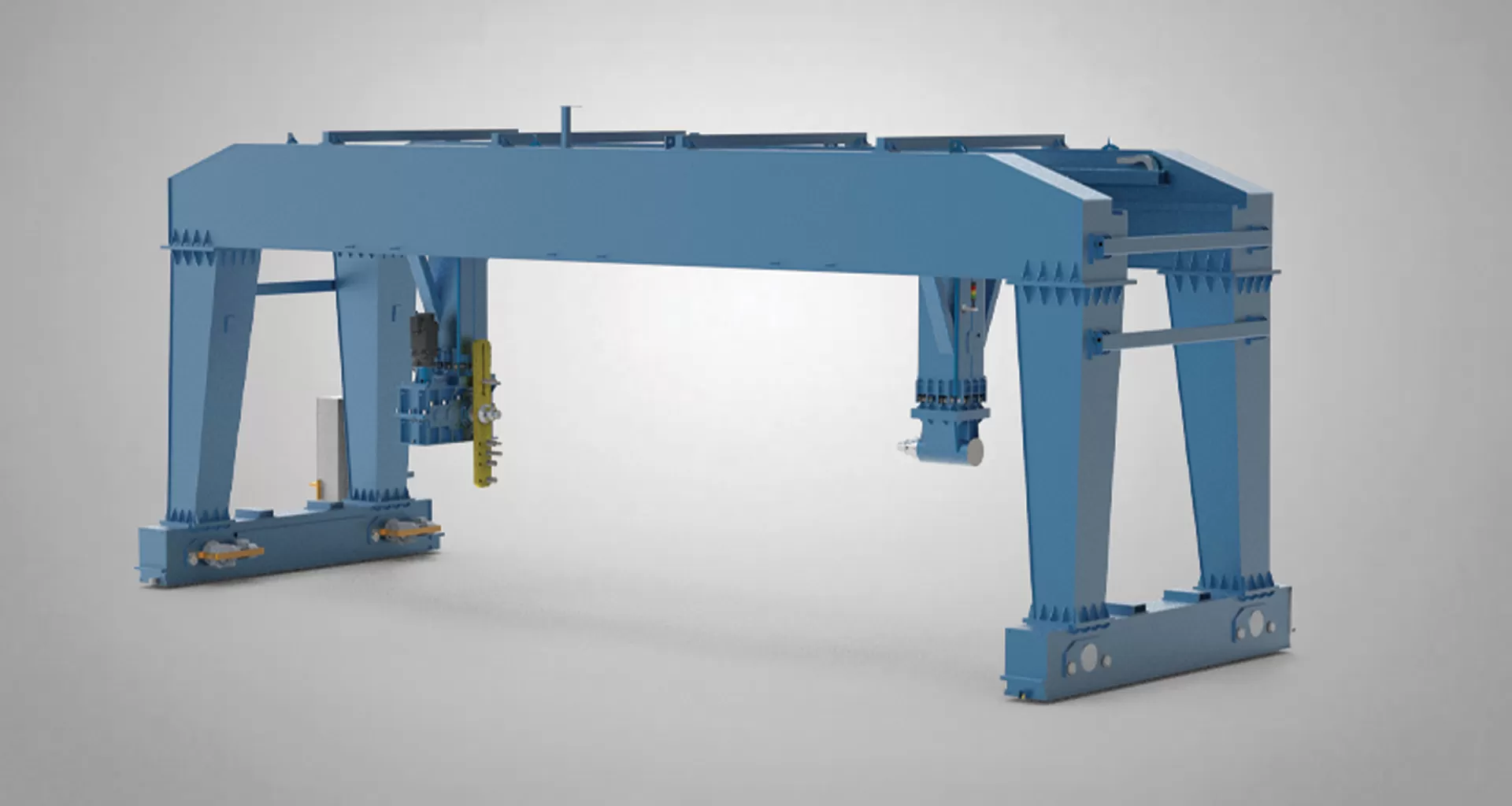

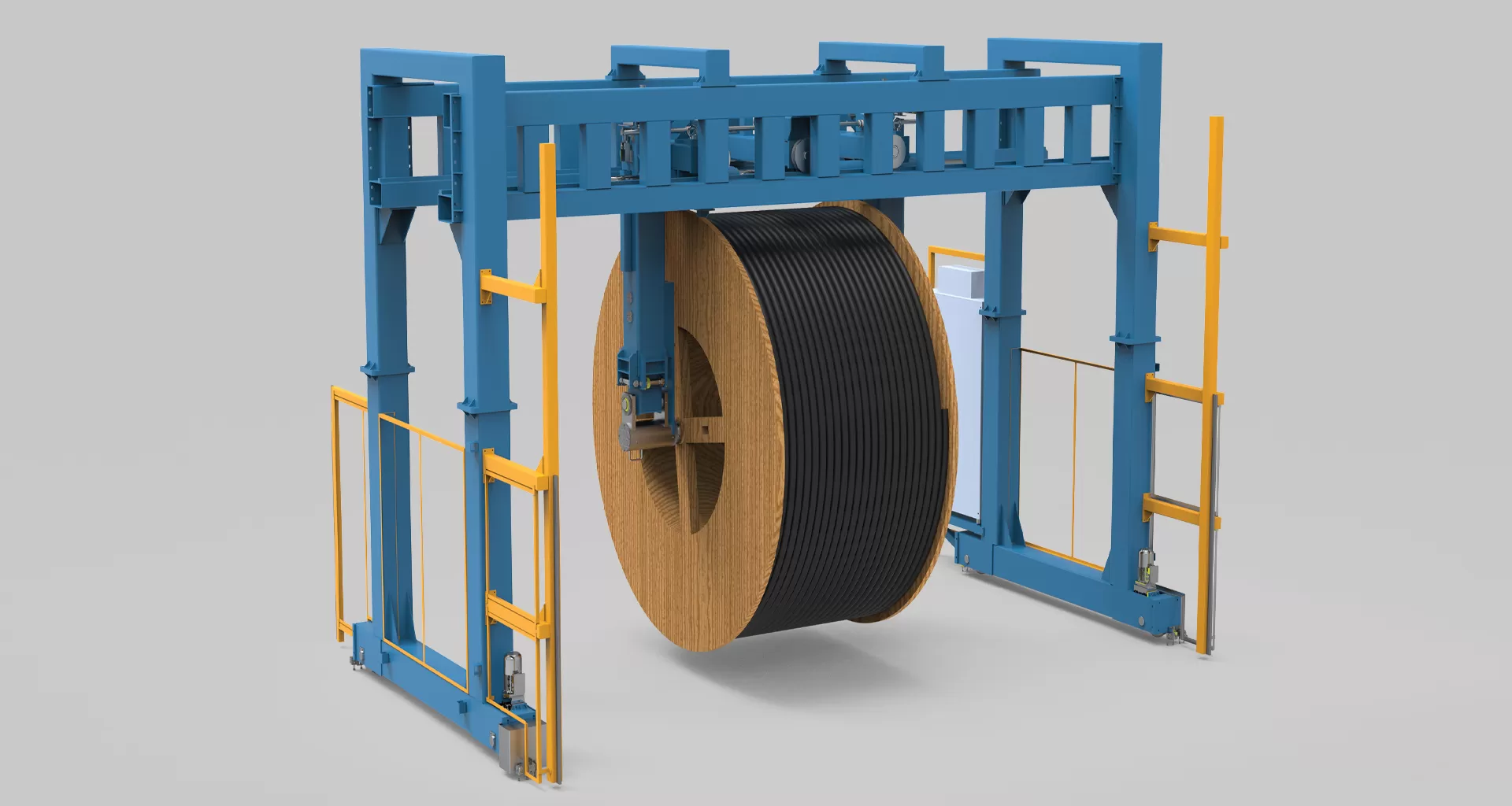

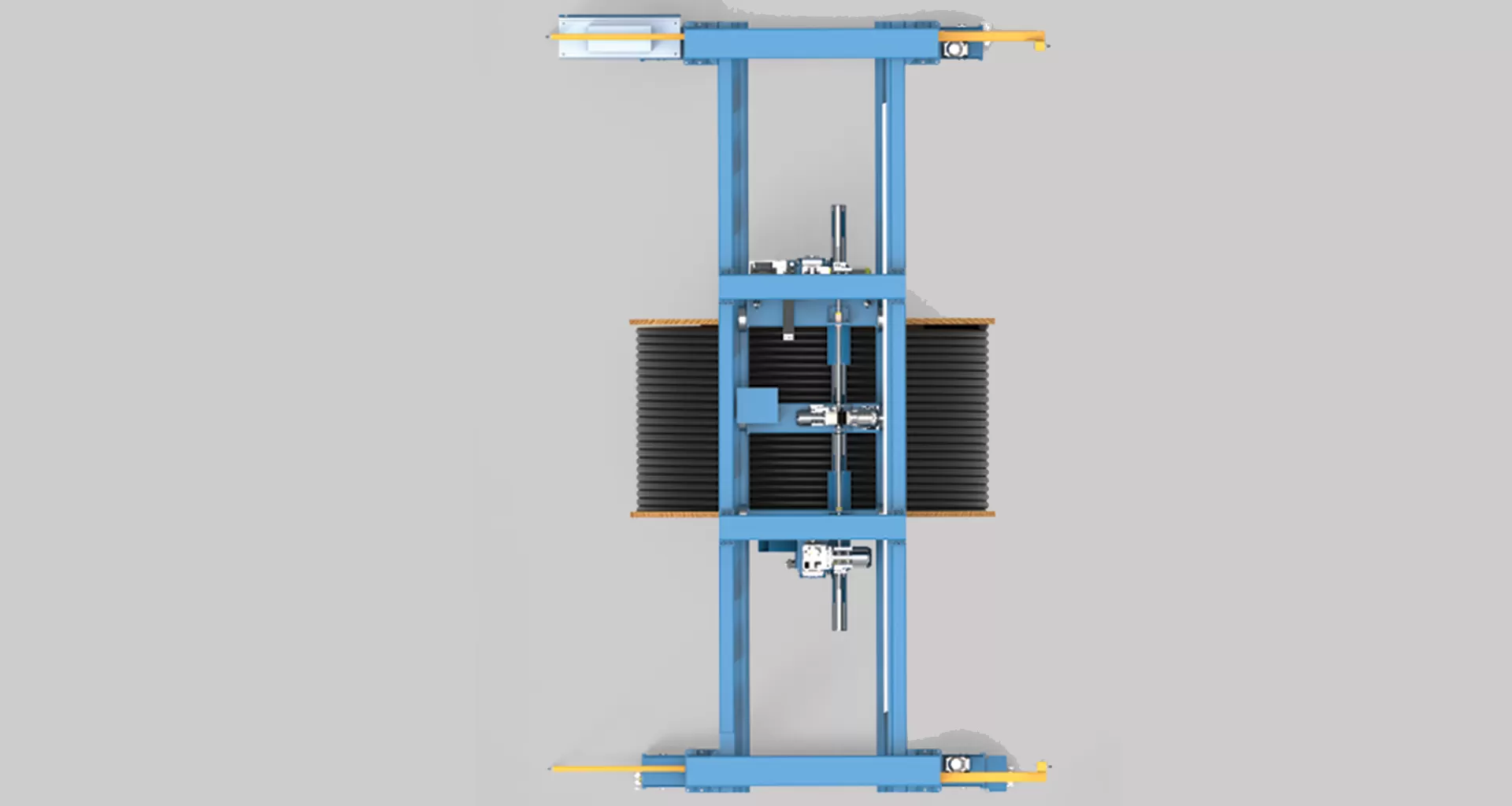

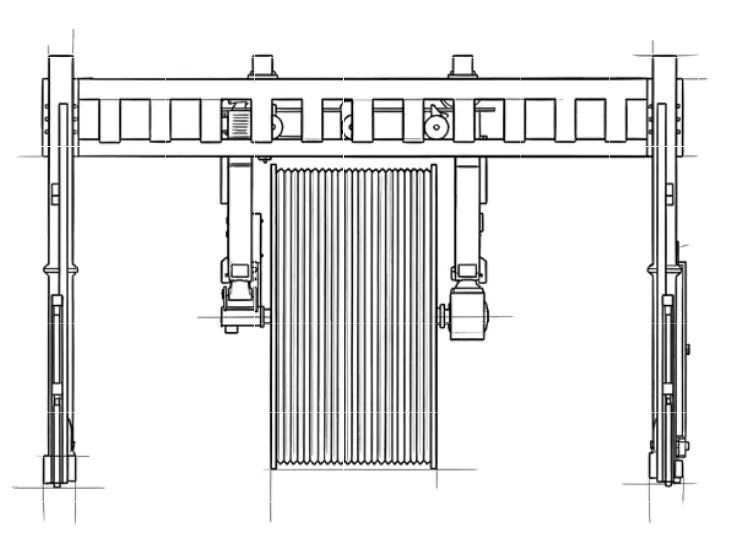

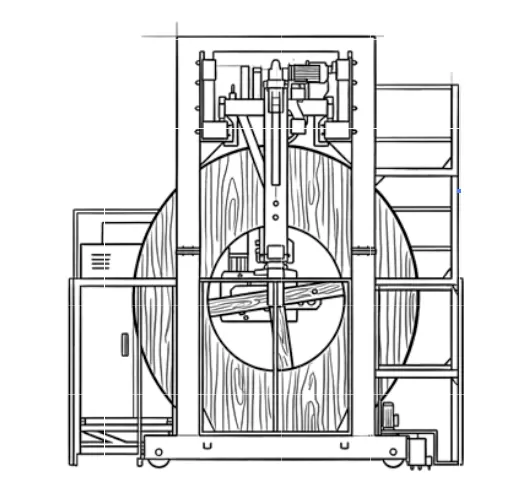

Featuring a modular design, GMM Gantry type Take Ups and Pay Off s off er easy adaptation for diverse winding and unwinding requirements. The system utilizes an overhead frame consisting of two stands connected by horizontal beams. The carriage includes extensible arms with pintles that pick-up reels directly from the fl oor. These arms are raised and lowered via precision nut screws, each driven by an AC brake motor for reliable and accurate positioning.

Productivity
Sensibility
Flexibility

GANTRY TYPE

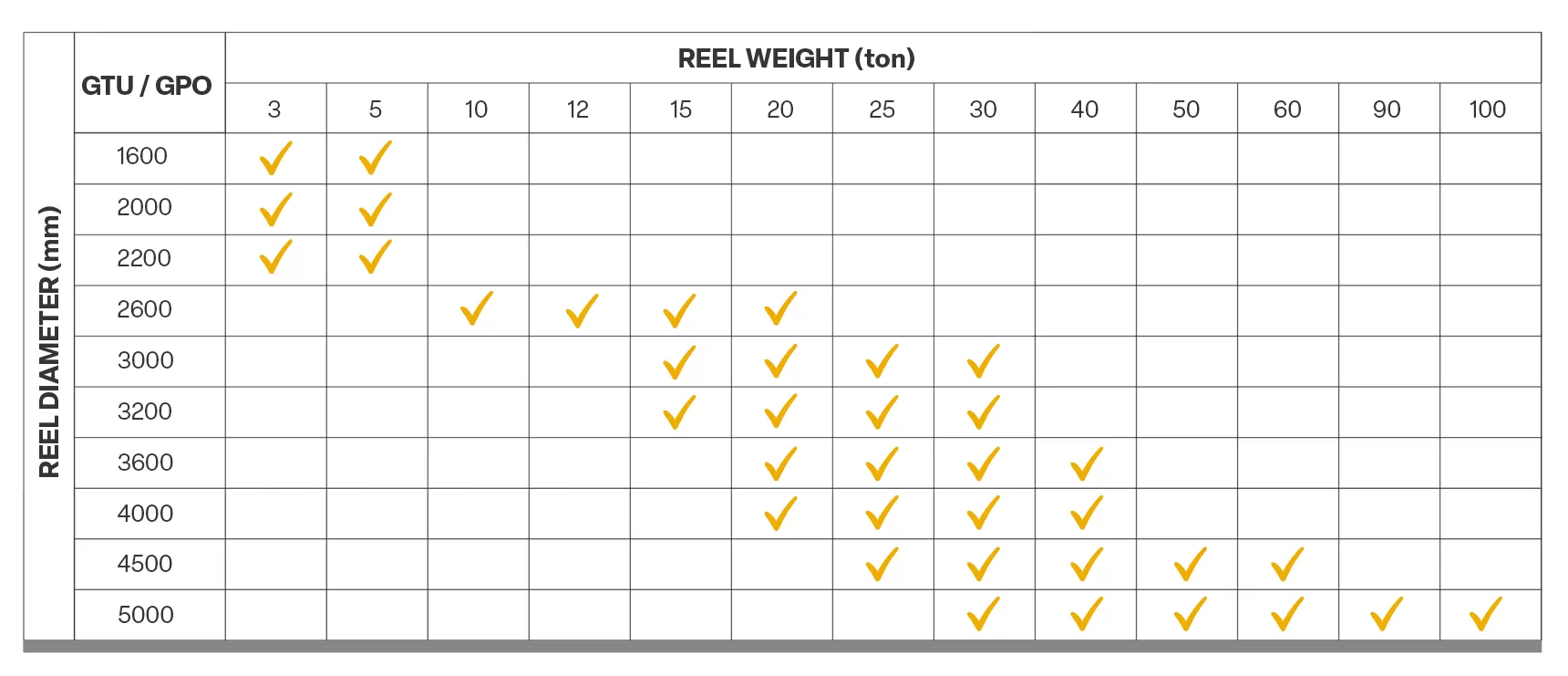

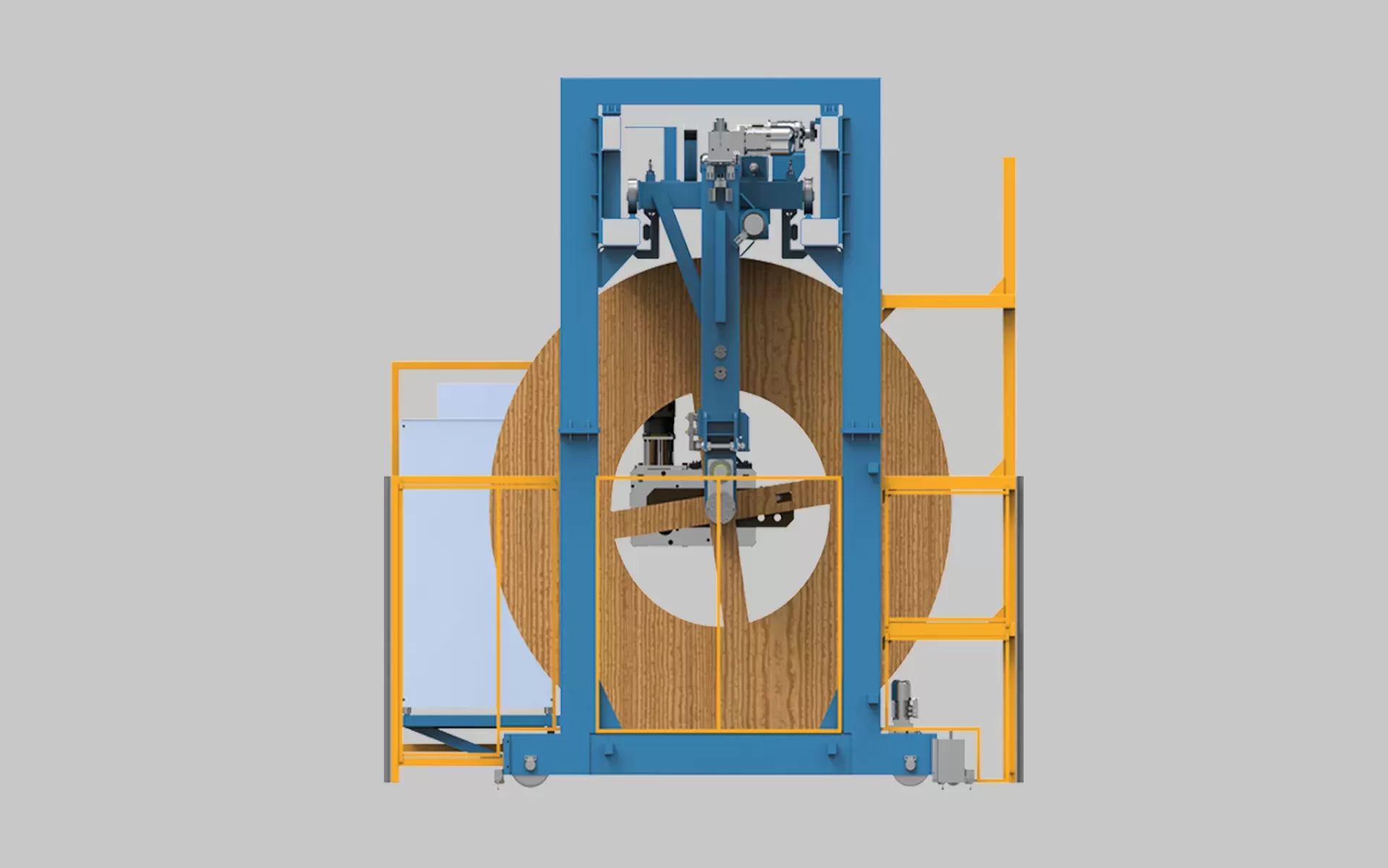

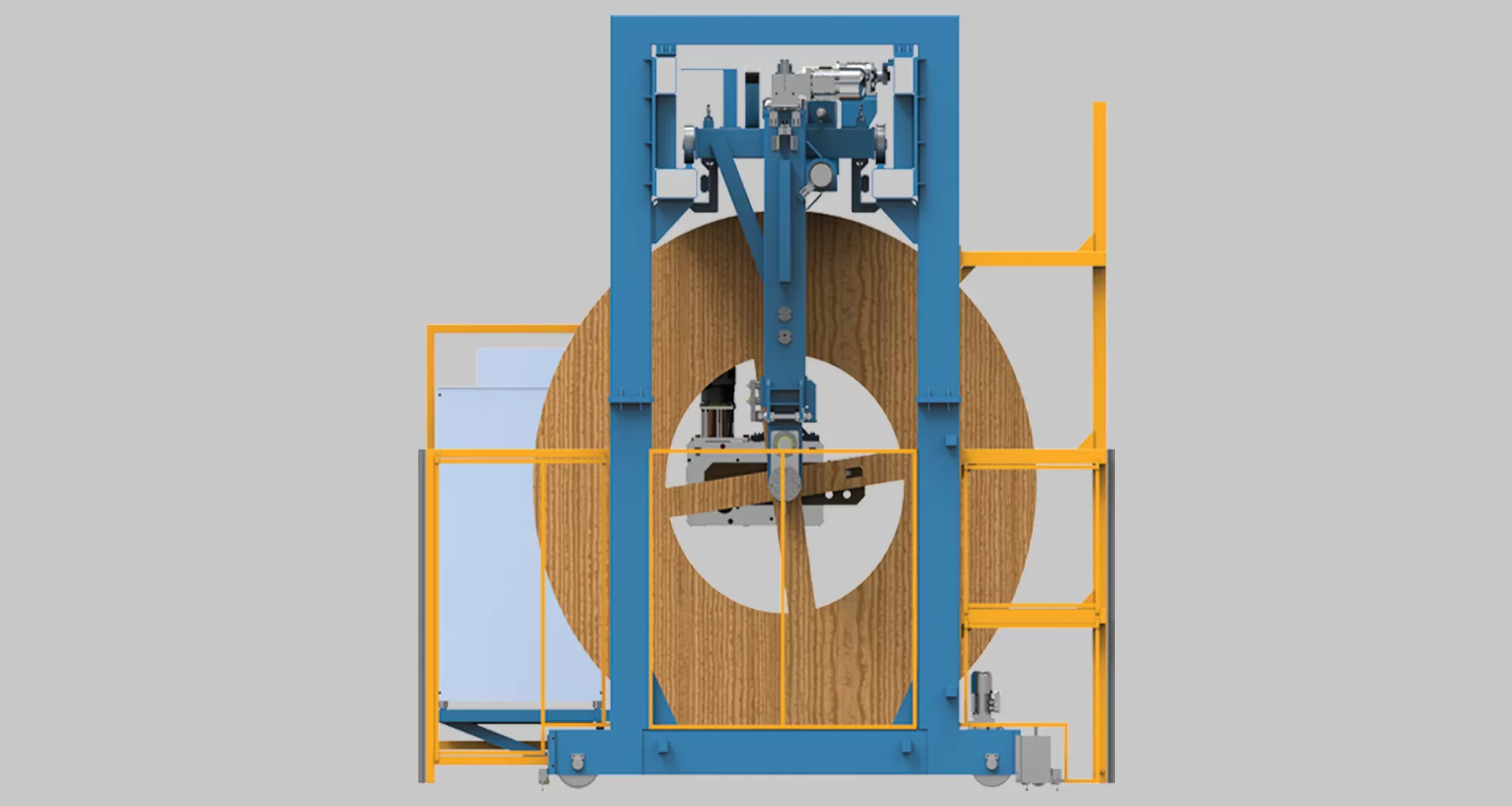

The reel is securely locked by translating the arms using an AC motor equipped with an adjustable torque limiter. A dog pin drive, powered by an AC motor, supports operation via torque mode, dancer, or accumulator control.

For precise movement, the traversing carriage employs a pinion and rack gear system, ensuring positive traction unaff ected by mechanical obstructions on the fl oor. Control is managed through a machine-mounted cabinet and a fl oor-fi xed operator panel with HMI.
