Pay-off & Take-ups

PINTLE TYPE

Single pintle pay-off system delivering precise tension control and reliable high-speed unwinding.

This Single Pintle Pay-Off is engineered for high-precision wire, cable and tube processing, featuring a robust frame that handles reels weighing up to 1,200 kg. The machine accommodates fl ange diameters from 600 mm to 1000 mm, with all loading, unloading, and pintle movements actuated by AC brake motors for maximum safety.
PINTLE TYPE
  • Productivity
    Productivity
  • Sensibility
    Sensibility
  • Flexibility
    Flexibility
PINTLE TYPE

PINTLE TYPE

While the standard model supports higher tension, this confi guration is optimized for a delicate tension range of 0.5 N to 10 N, managed via a low-friction air-cylinder dancer system.
PINTLE TYPE

PINTLE TYPE

The drive system is powered by highperformance components, including the main motor, gearbox, and PLC. Control is centralized through an intuitive HMI, utilizing Profi net for seamless line integration at speeds up to 650 m/min. All electrical equipment is housed in a single cabinet, providing a modular and reliable solution for modern wire application lines.

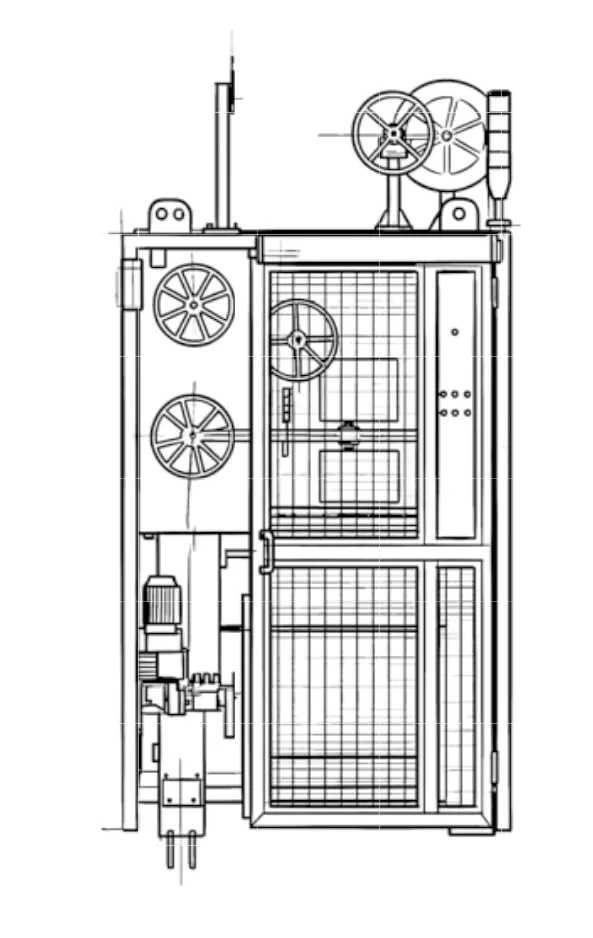

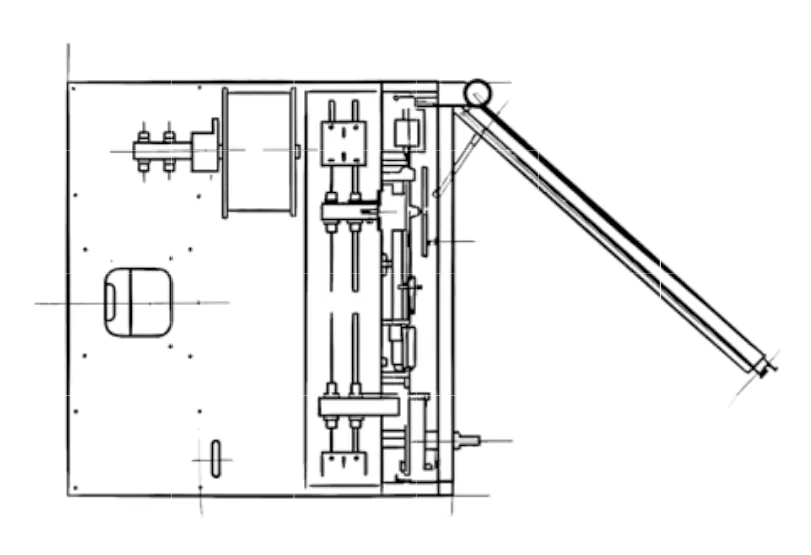

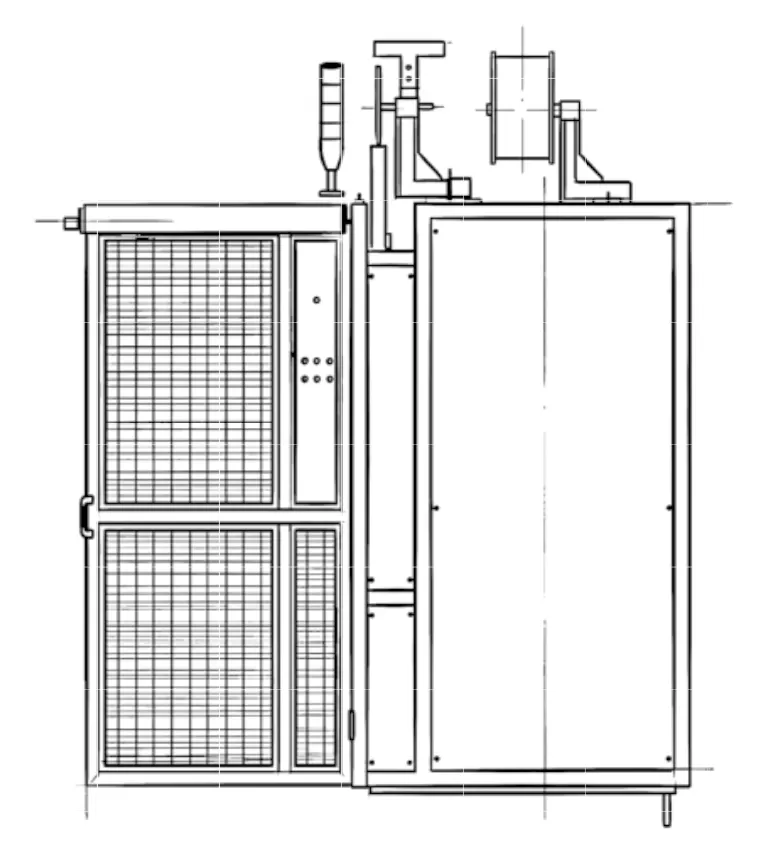

FRONT VIEW TOP VIEW SIDE VIEW

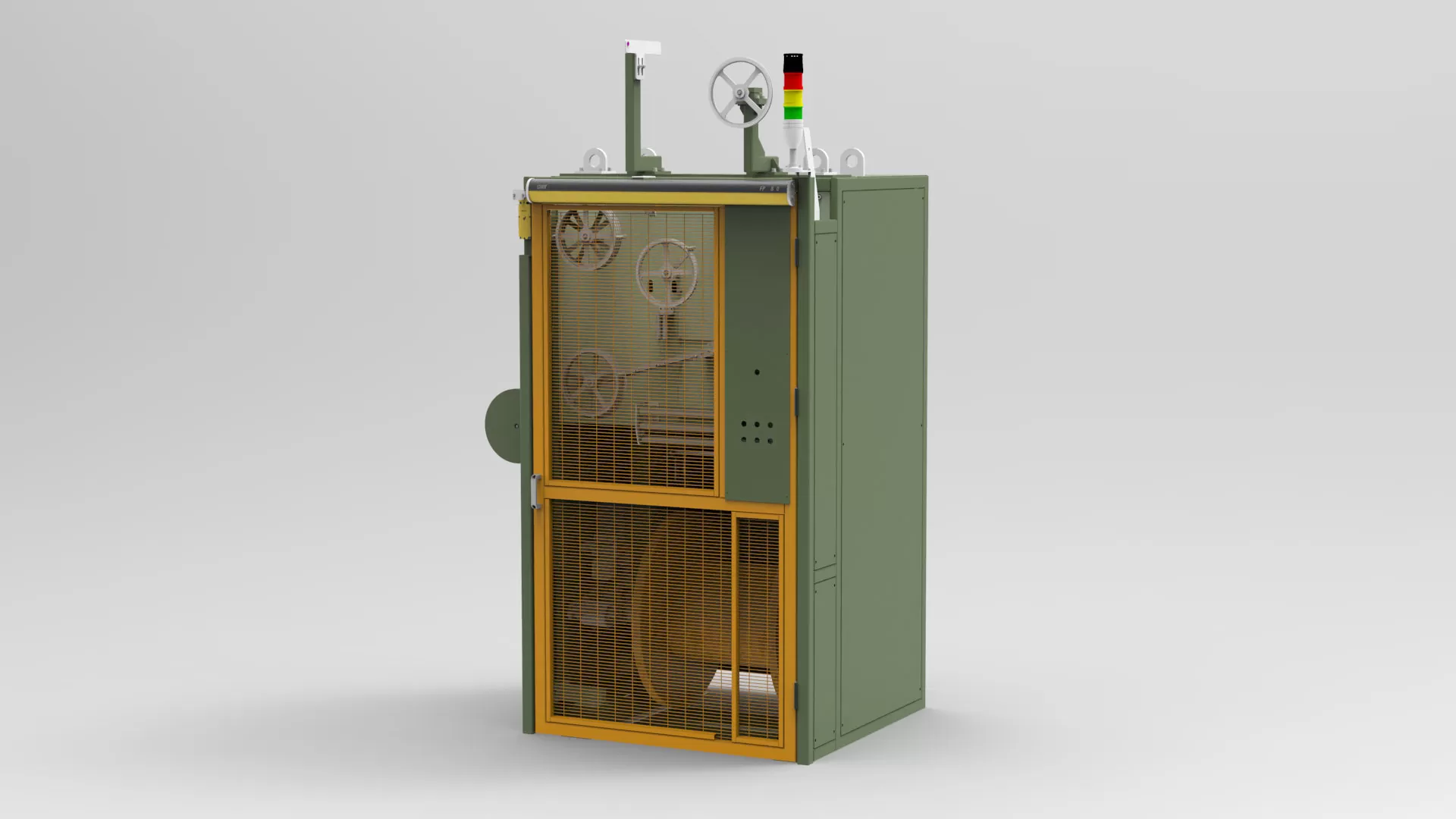

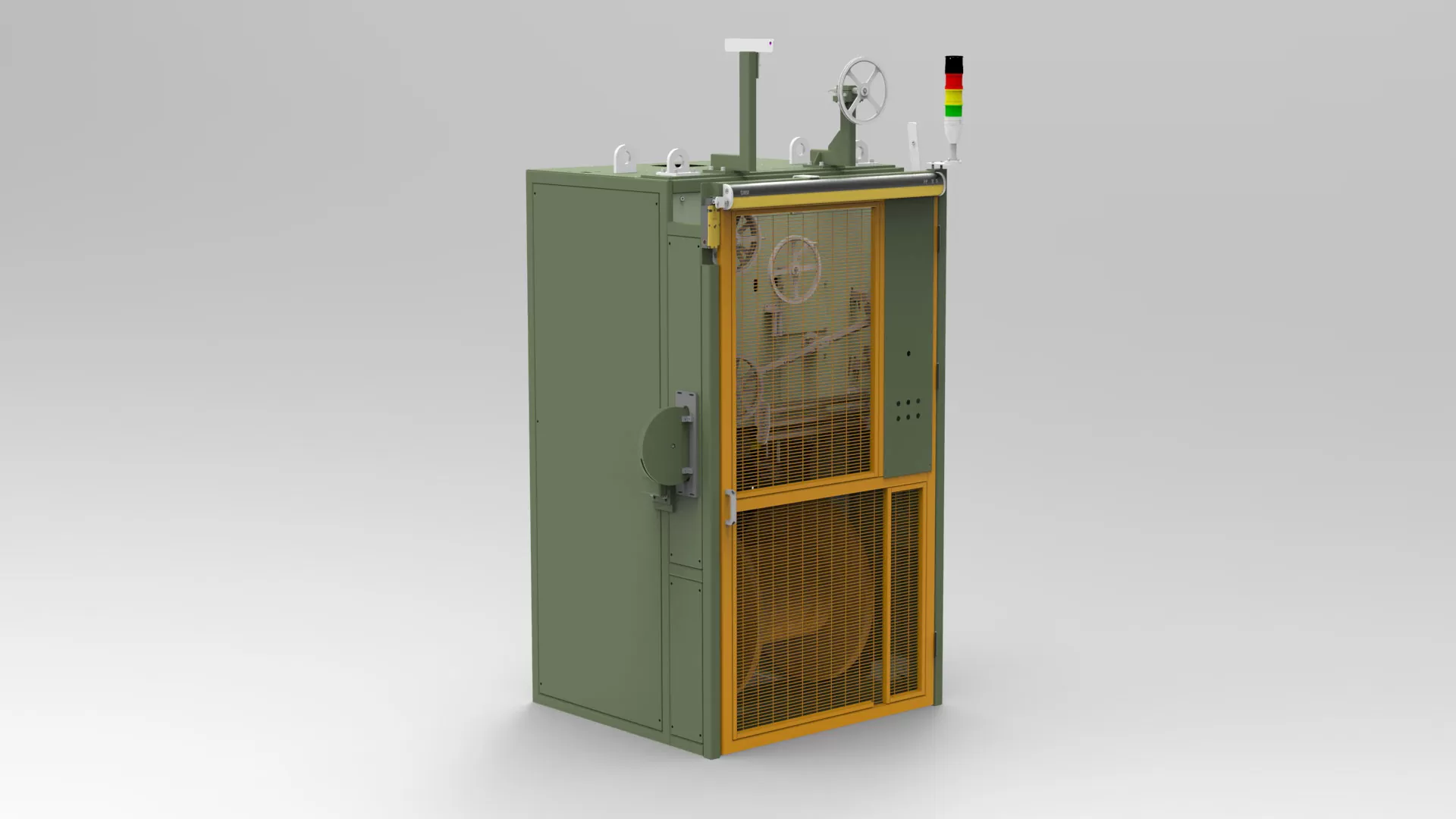

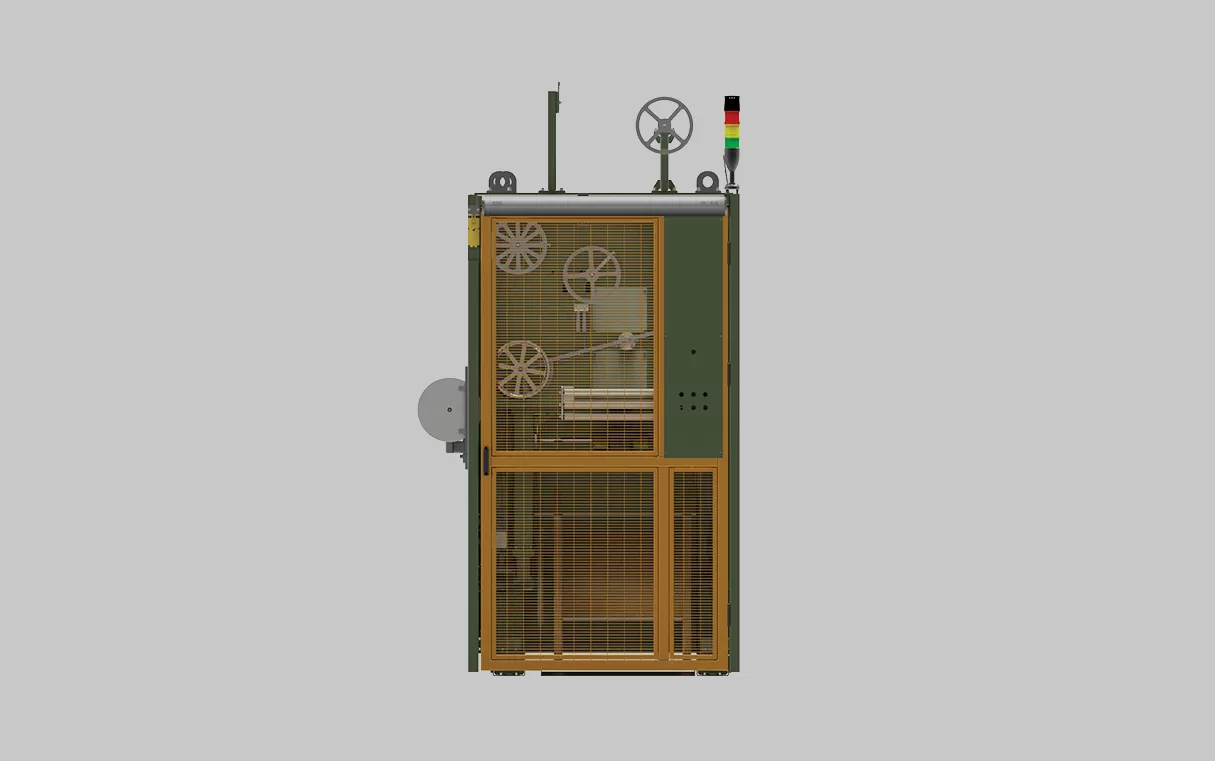

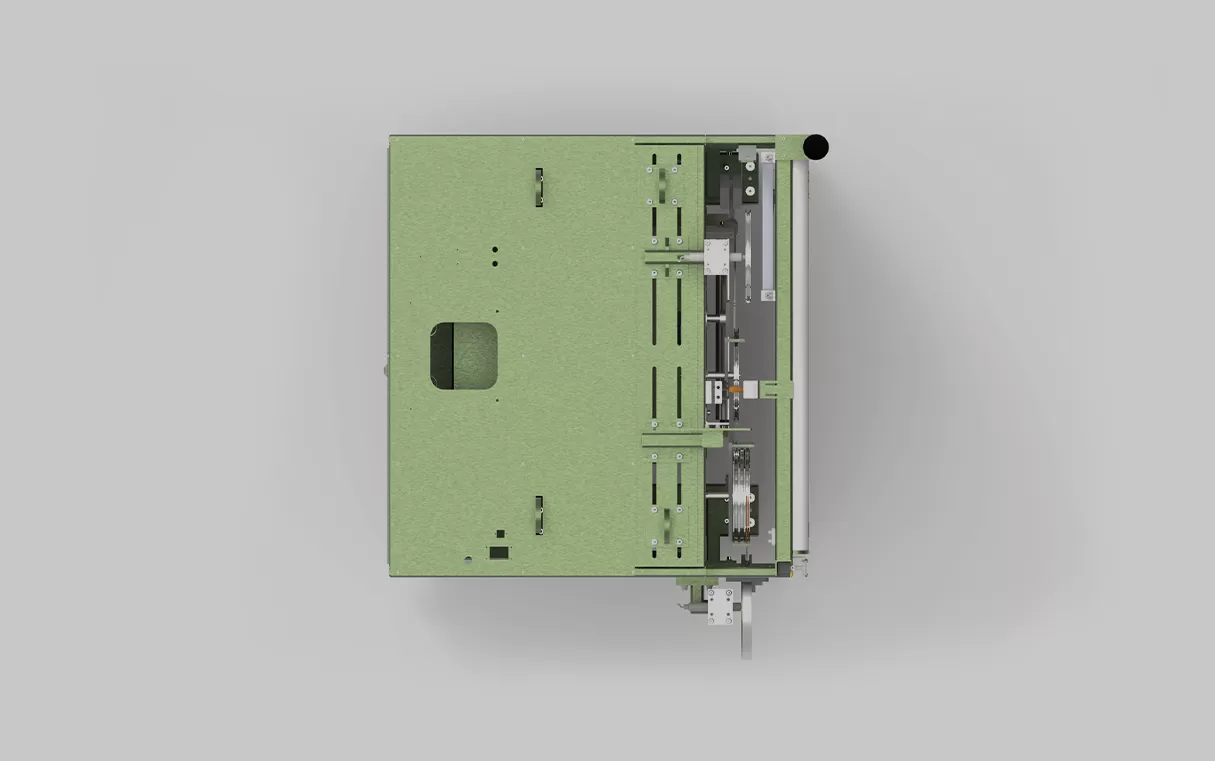

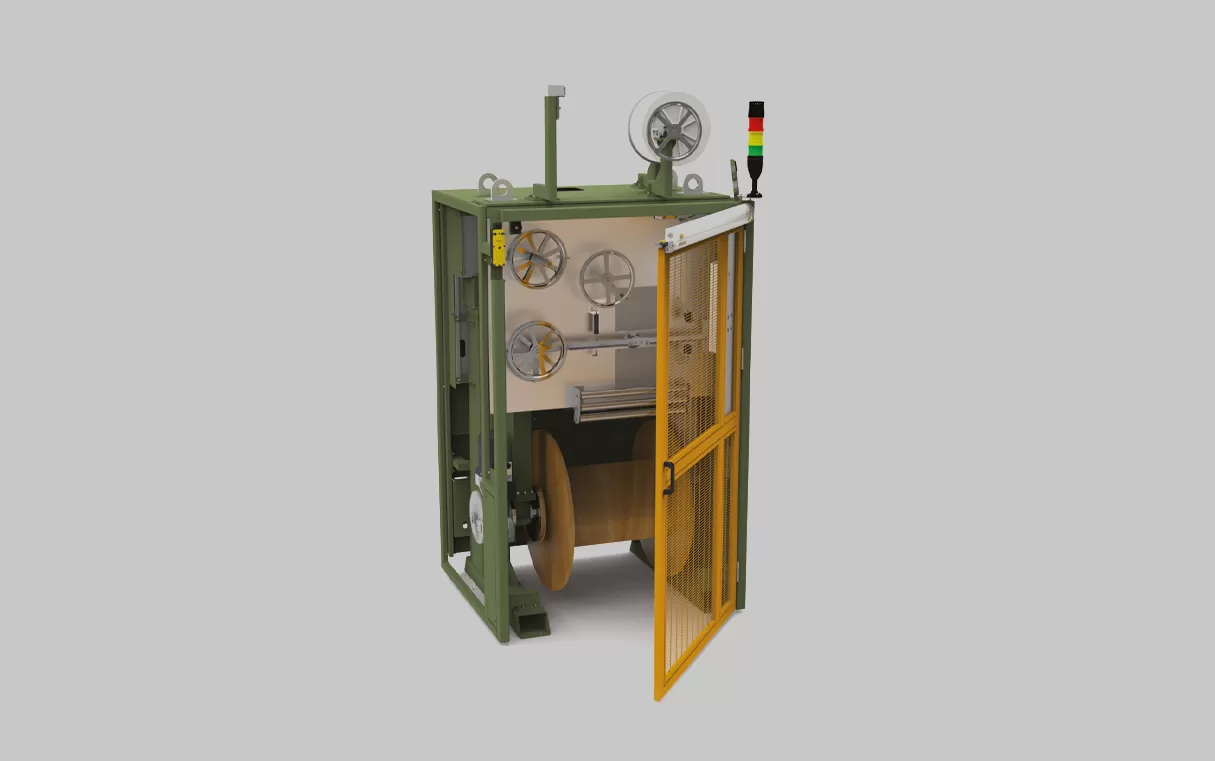

Photo Gallery

Technical Specifications

PINTLE TYPE

Custom designs can be made upon your request.

Contact us for more information about this product
