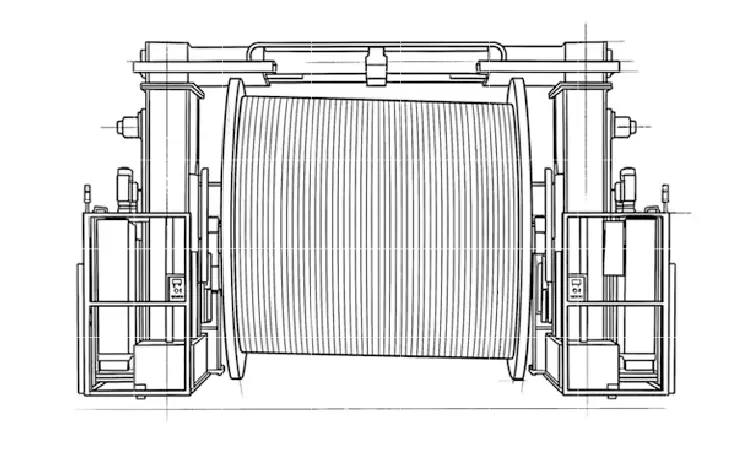

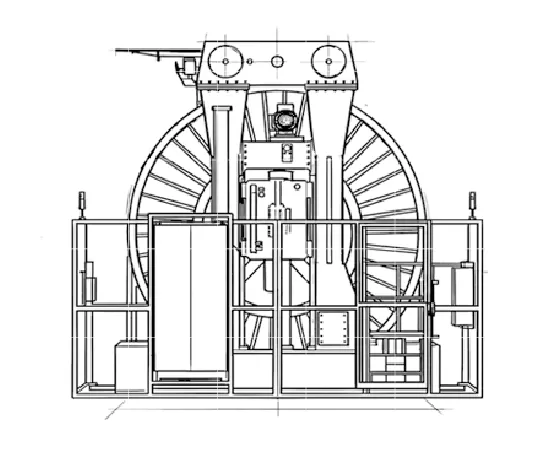

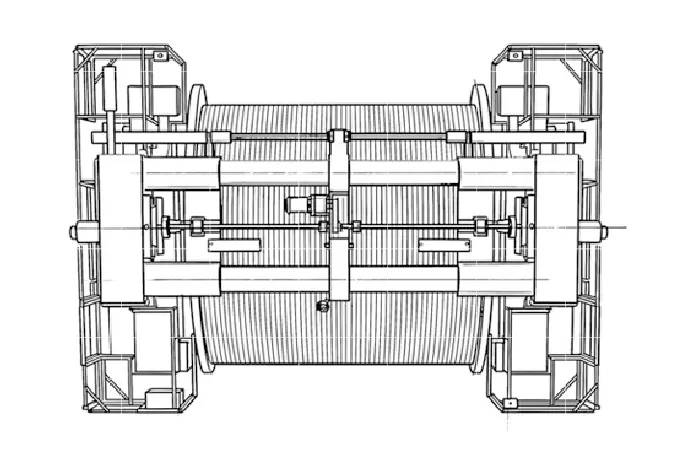

PORTAL L-TYPE

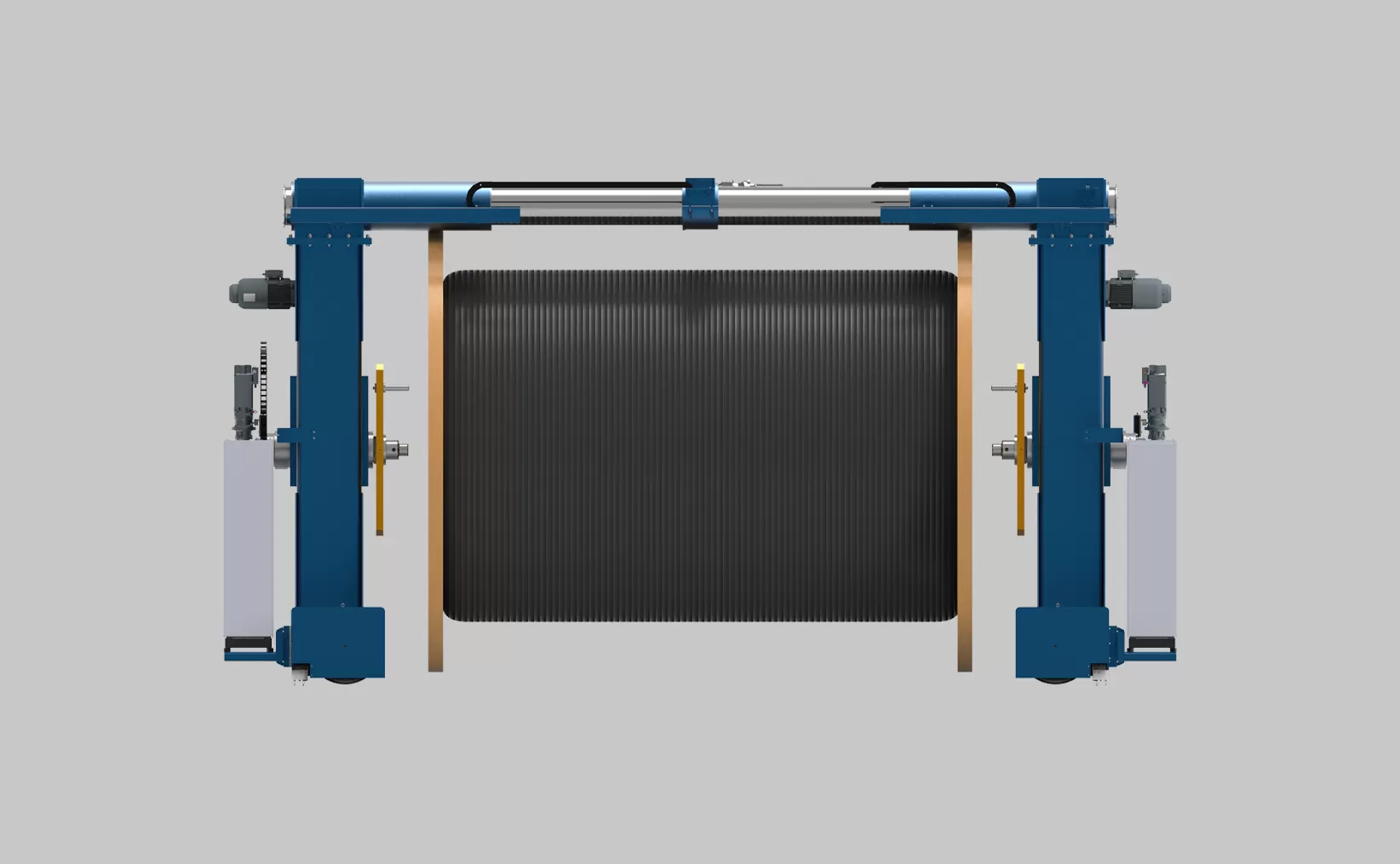

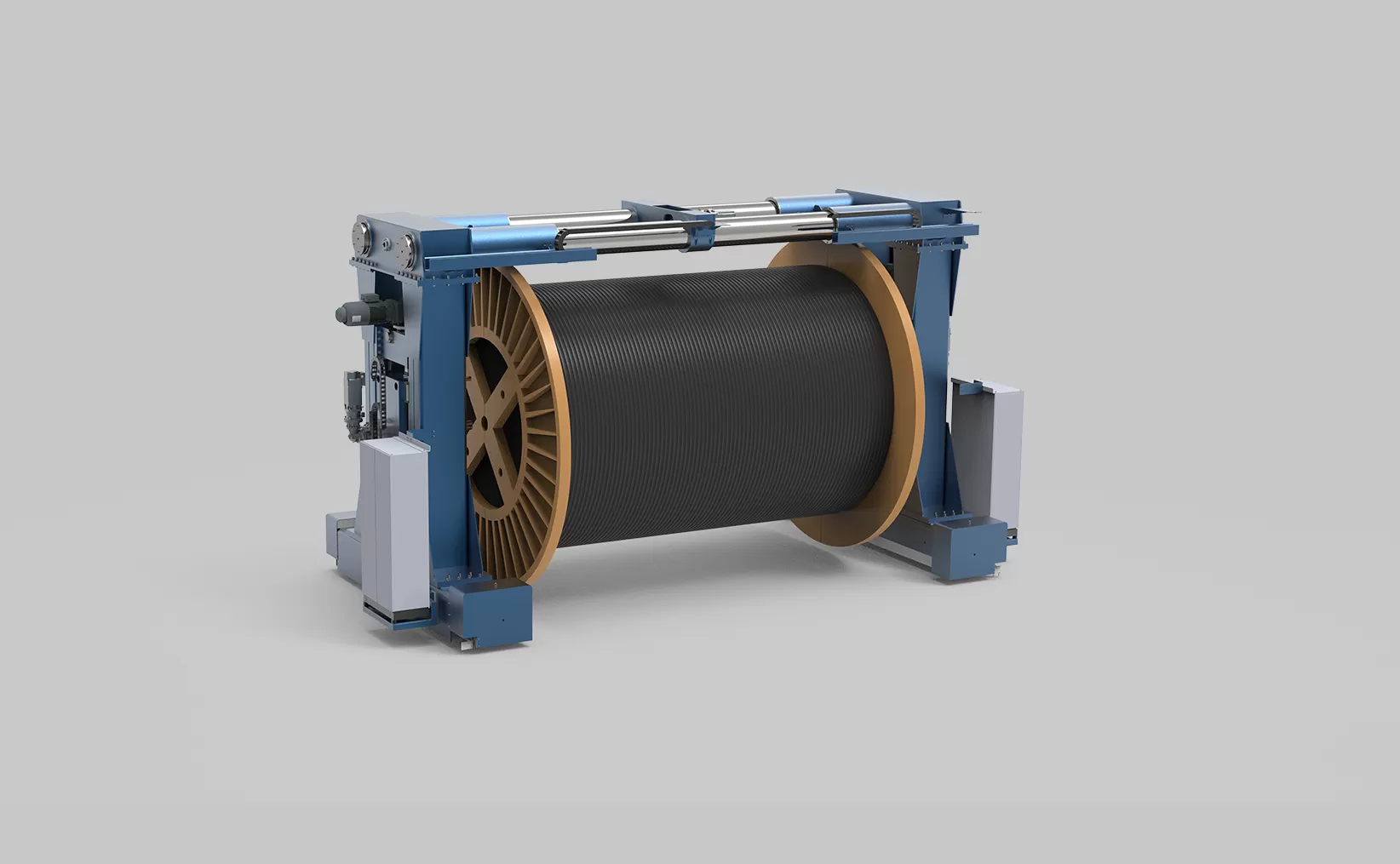

GMM’s frame-free walk-through machine allows drums to be rolled from either side for eff ortless loading. Engineered for effi ciency, the system picks up reels directly from the fl oor semi-automatically, eliminating the need for external lifting equipment. The entire unit operates on embedded motor-driven rails, providing fl exibility to move a single column or the complete assembly for perfect alignment and traversing.

Productivity
Sensibility
Flexibility

PORTAL L-TYPE

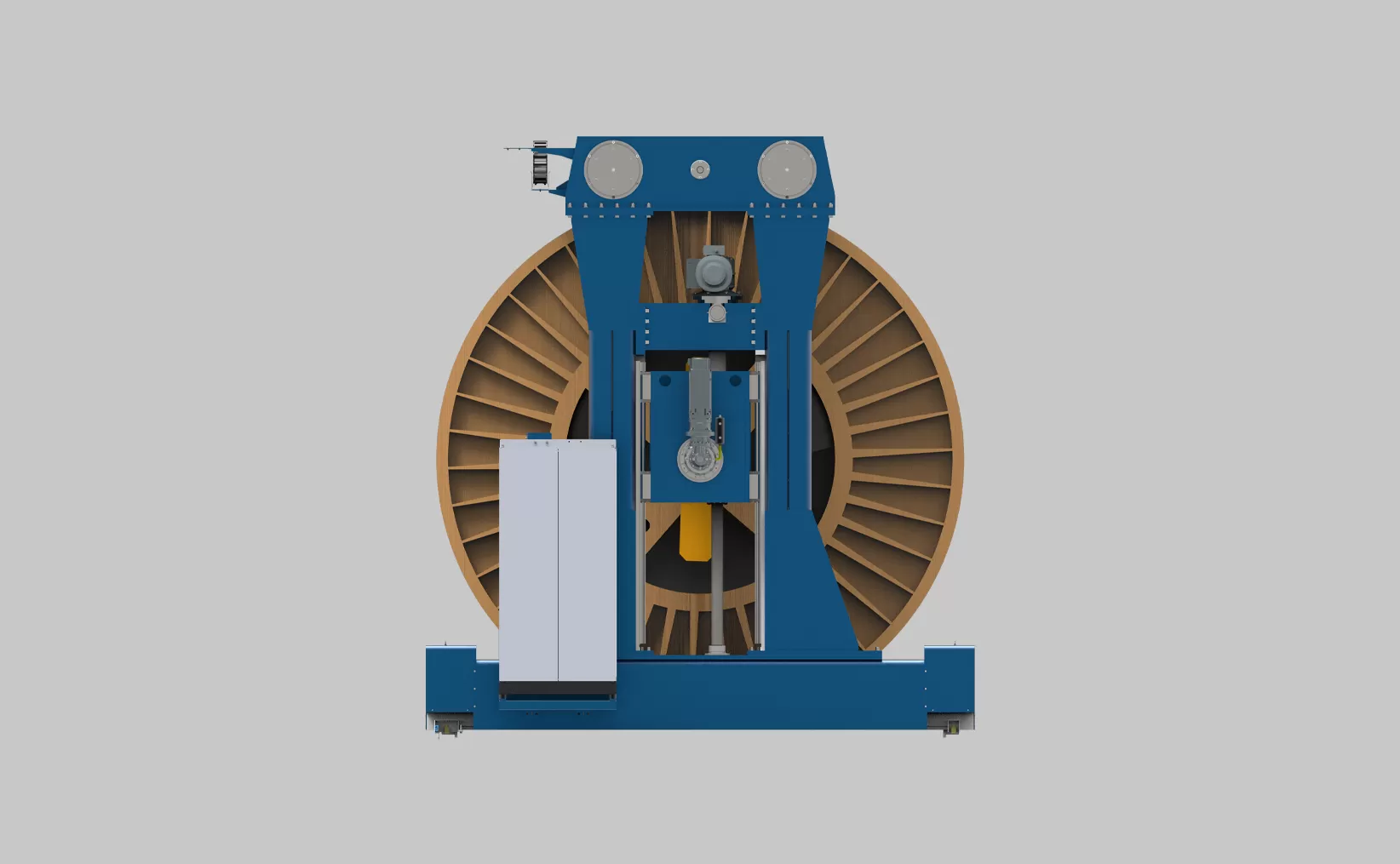

Lifting and lowering are managed by dual AC brake motors driving precision nut screws on extensible arms. Once positioned, the reel is securely locked by an AC motor equipped with an adjustable torque limiter. The drive system utilizes two forced-ventilation motors, supporting operation via constant torque, dancer control, or accumulator integration.

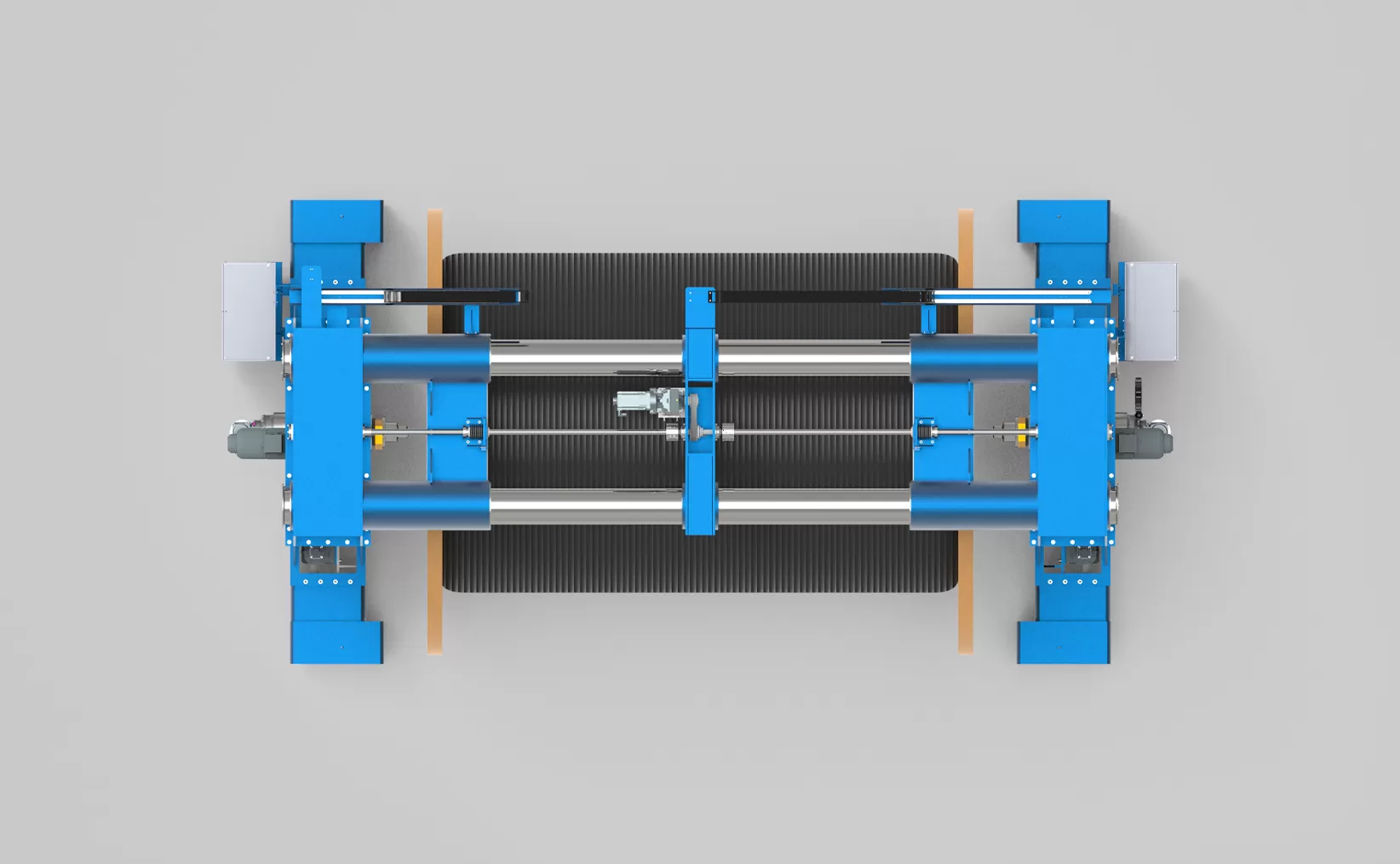

To maintain product integrity, this traversing Take-Up moves on a raised platform or an embedded structure, ensuring precise winding without lateral defl ection. The integrated electrical panel is powered via fl exible cabling to maintain mobility.
